Introduction
Choosing the right display interface is a critical decision when designing laptops, industrial displays, medical equipment, embedded systems, and consumer electronics. Two of the most common display technologies are LVDS (Low-Voltage Differential Signaling) and eDP (Embedded DisplayPort). While LVDS has been a reliable industry standard for many years, eDP is rapidly becoming the preferred solution for modern high-resolution displays.
Understanding the differences between LVDS and eDP cables can help engineers and OEMs select the best interface for their application. In this guide, we’ll compare LVDS and eDP technologies, their advantages, limitations, and ideal use cases.
What Is LVDS?

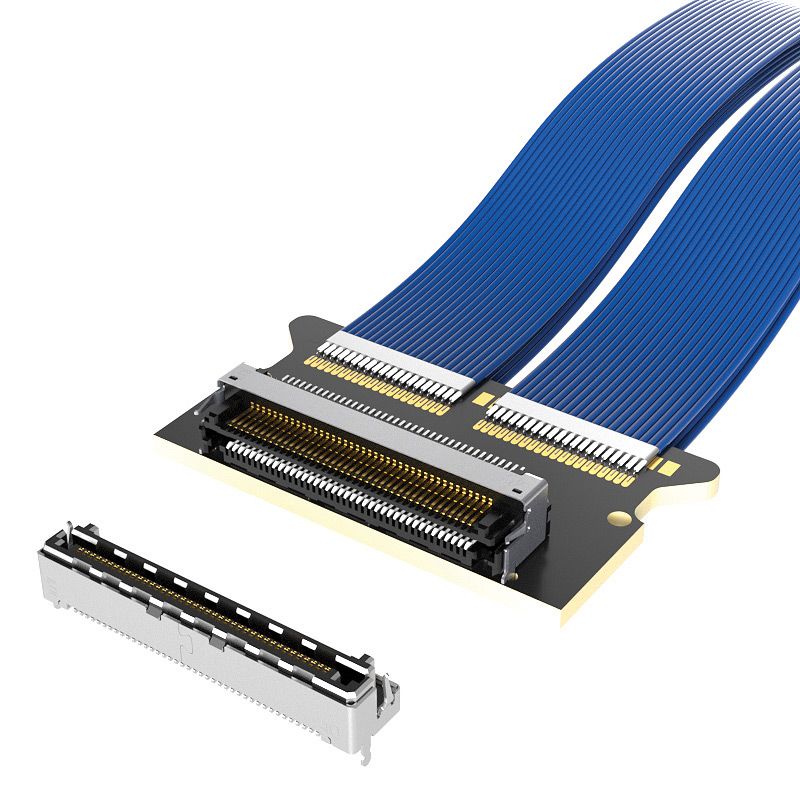

LVDS (Low-Voltage Differential Signaling) is a communication standard that transmits digital video signals using differential pairs of wires. It has been widely used in LCD displays for laptops, industrial equipment, medical devices, and automotive applications.
Key Characteristics of LVDS
- Uses multiple differential wire pairs
- Low power consumption
- Excellent noise immunity
- Supports moderate display resolutions
- Proven long-term reliability
- Mature and cost-effective technology
Typical Applications
- Industrial control panels
- Medical equipment
- Legacy laptop displays
- Automotive infotainment systems
- Embedded computing platforms
What Is eDP?
Embedded DisplayPort (eDP) is a display interface developed from the DisplayPort standard specifically for internal display connections. It offers significantly higher bandwidth and more advanced features than LVDS.
Key Characteristics of eDP
- High-speed serial communication
- Fewer wires compared to LVDS
- Supports higher resolutions and refresh rates
- Improved power management
- Enhanced display features
- Better scalability for future display technologies
Typical Applications
- Modern laptops
- Gaming systems
- AI computing devices
- Medical imaging equipment
- High-resolution industrial displays
- Portable electronic devices
LVDS vs eDP: Technical Comparison
| Feature | LVDS | eDP |
|---|---|---|
| Signal Type | Parallel | Serial |
| Number of Conductors | More | Fewer |
| Maximum Resolution | Moderate | Very High |
| Bandwidth | Lower | Higher |
| Power Efficiency | Good | Excellent |
| Cable Size | Larger | Smaller |
| EMI Performance | Good | Excellent |
| Future Scalability | Limited | High |
| Panel Self Refresh | No | Yes |
| Adaptive Refresh Support | No | Yes |
Resolution and Bandwidth
One of the biggest differences between LVDS and eDP is bandwidth capacity.
Traditional LVDS implementations typically support:
- 1366×768
- 1920×1080
- Some dual-channel LVDS solutions support higher resolutions
eDP supports significantly higher resolutions, including:
- 2560×1440
- 3840×2160 (4K)
- 5120×2880 (5K)
- 8K displays in advanced implementations
For manufacturers developing next-generation displays, eDP provides a much more future-proof solution.
Cable Complexity
LVDS typically requires multiple differential pairs to transmit video data. As display resolution increases, additional signal pairs may be required.
Advantages of eDP include:
- Reduced cable size
- Lower weight
- Simplified routing
- Improved airflow in compact devices
- Lower assembly complexity
These benefits are particularly valuable in thin laptops, portable medical devices, and compact industrial systems.
Power Consumption
Power efficiency has become increasingly important in battery-powered devices.
eDP includes advanced power-saving technologies such as:
- Panel Self Refresh (PSR)
- Dynamic Refresh Rate Switching
- Backlight Power Optimization
- Reduced Signal Activity During Static Images
As a result, eDP can significantly extend battery life in portable electronics.
Signal Integrity Considerations
Modern displays require reliable high-speed data transmission.
Both LVDS and eDP use differential signaling, which helps reduce electromagnetic interference (EMI). However, eDP’s serial architecture often provides:
- Better signal integrity at high data rates
- Lower electromagnetic emissions
- Improved compatibility with high-resolution panels
- Reduced crosstalk between signal pairs
This makes cable design and manufacturing quality especially important.
When Should You Choose LVDS?
LVDS remains an excellent option when:
You Have Existing System Designs
Many industrial and medical products remain in production for years. Maintaining compatibility with existing LVDS infrastructure can reduce redesign costs.
Resolution Requirements Are Modest
For standard HD displays, LVDS often provides sufficient performance.
Long-Term Component Availability Matters
Industrial systems frequently prioritize proven technology over cutting-edge performance.
Cost Optimization Is Important
In certain applications, LVDS solutions may offer cost advantages due to mature ecosystem support.
When Should You Choose eDP?
eDP is generally the better choice when:
High Resolution Is Required
4K and higher-resolution displays benefit greatly from eDP’s bandwidth capabilities.
Device Size Is Limited
Compact products benefit from smaller cable assemblies and simplified routing.
Power Efficiency Is Critical
Battery-powered systems can leverage eDP’s advanced power-saving features.
Future Upgrades Are Planned
eDP offers a scalable path for future display technologies.
Custom Cable Assembly Considerations
Whether using LVDS or eDP, cable quality directly impacts display performance.
Important factors include:
- Controlled impedance design
- Shielding effectiveness
- Signal pair matching
- Connector quality
- Bend radius management
- EMI mitigation
- Manufacturing consistency
Custom cable assemblies can be optimized to meet specific mechanical and electrical requirements while ensuring reliable display performance.
How Darlox Supports LVDS and eDP Projects
At Darlox, we design and manufacture custom:
- LVDS cable assemblies
- eDP cable assemblies
- Micro coax display cables
- FFC and FPC display interconnects
- Custom wire harness solutions
Our engineering team works closely with OEMs in robotics, medical devices, industrial automation, AI hardware, and consumer electronics to develop high-performance display connectivity solutions tailored to their requirements.
Conclusion
Both LVDS and eDP remain valuable display interface technologies, but they serve different needs. LVDS continues to excel in legacy, industrial, and cost-sensitive applications, while eDP has become the preferred choice for modern high-resolution displays requiring superior bandwidth, power efficiency, and future scalability.
For new product designs, eDP is often the recommended solution. However, existing systems with proven LVDS architectures may continue to benefit from the reliability and simplicity of LVDS technology.
By understanding the strengths and limitations of each interface, engineers can make informed decisions that optimize performance, reliability, and long-term product success.
